Our Machines

Haas VF-5SS Super-Speed Vertical Mill

Airmate has made this machine even more versatile, designing and creating a dual purpose table. A vacuum table for thinner or flat parts and the ability to use the standard vise system for holding parts.

Both systems can be used together if needed. The VF-5SS will be used for machining aluminum and all types of plastic.

Haas VF-4SS Super-Speed Vertical Mill

Airmate can CNC machine all kinds of plastic, aluminum and steel on this mill. This includes the same high speed tool chnages as the VF-5SS.

The use of coolant and vices allow for tight tolerances with exceptional finishes.

Haas VF-2

The Haas VF2 is a 3 axis CNC Vertical Machining Center with a 40 Taper, 4-Axis Rotary Capability, high-power, direct-drive spindles, 30in X-Axis x 16in Y-Axis x 20in Z-Axis, 30 hp vector drive, 12,000 rpm, 30-station carousel tool changer, 25.4 m/min rapids, power-failure detection module, rigid tapping, and 55-gallon coolant system.

Haas DT-1

The DT-1 is a compact, high-speed drill and tap machine with full milling capabilities. A powerful BT30 taper inline direct-drive spindle provides 10,000 rpm and allows high-speed rigid tapping. A high-speed, 20-pocket tool changer swaps tools quickly, while 2400 ipm rapids and high acceleration rates shorten cycle times and reduce non-cutting time. The DT-1’s lean-style, compact footprint makes very efficient use of valuable shop floor space.

Travels: X-Axis: 20.0″ Y-Axis: 16.0″ Z-Axis: 15.5″ • Cutting Feed Rates: 1200 Inch Per Minute • Spindle Nose to Table (Min.- Max.): 6″ – 21.5″

Table: Length: 26″ Width: 15″ • Number of Std T-Slots:3 • T-Slot Width: 5/8″ • Max Weight on Table: 250 lbs

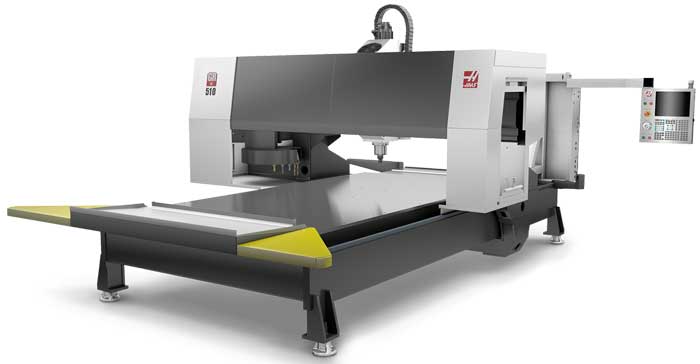

GR-510 and GR-712 CNC Gantry Routers

The Haas GR-510 and GR-712 routers have the power to cut plastic, aluminum, and other metals with ease.

With a travel distance of 61" x 121" on the GR-510's and 85" x 145" on the GR-712 these machines can easily handle your most extensive applications.

Like the VF-4 and VF-5 machining centers, Airmate has outfitted both routers with vacuum tables and the ability to use multiple vises or fixtures, making them even more versatile.

Haas ST-25 CNC Lathe

Airmate can now CNC lathe plastics, aluminum and steel.
With a 15" x 21" max capacity and a 3.0" bar capacity.

Haas ST-25Y CNC Lathe

Haas has completely redesigned their best-selling ST-25 Series turning centers to provide even more performance, features, and value than ever before with the ST-25Y. It has been re-engineered from the ground up – to create a more rigid machine with superior cutting performance and a host of productivity-enhancing options from the original ST-25.

• New castings – more compact and more rigid
• Increased Z-axis travel
• Two-Stage Automatic Parts Catcher
• Automatic Bar Feeder
• Auto Door
• Live Tooling
• Ideal for high-volume, high-production environments

Our Process

Airmate Plastic Fabrication purchases all types of plastic material from 0.010” to 3.00” thick in bulk from a wide range of reliable sources. This partnership with suppliers ensures the consistent quality of materials, lead times and prices to provide a quality custom product to our customers. We’ve built a loyal and diverse customer base by providing quick quotes and on-time delivery so that you can meet your deadlines.

Our engineers and machinists have developed innovative processes to provide the highest quality plastic components to your specifications when you need them. We work with you every step of the way to ensure your product gets the attention to detail you come to expect from Airmate Company.
